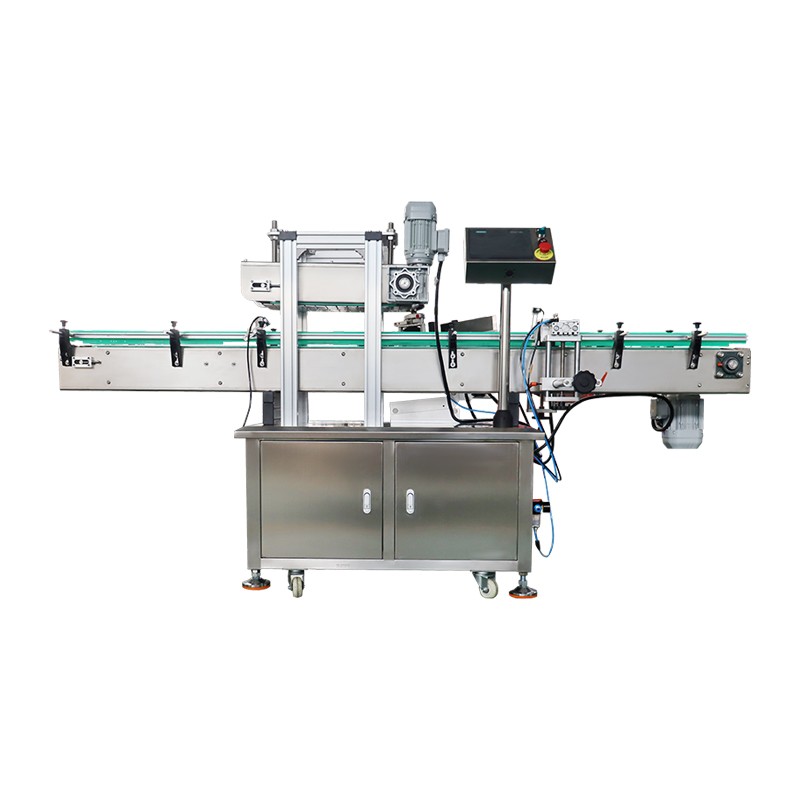

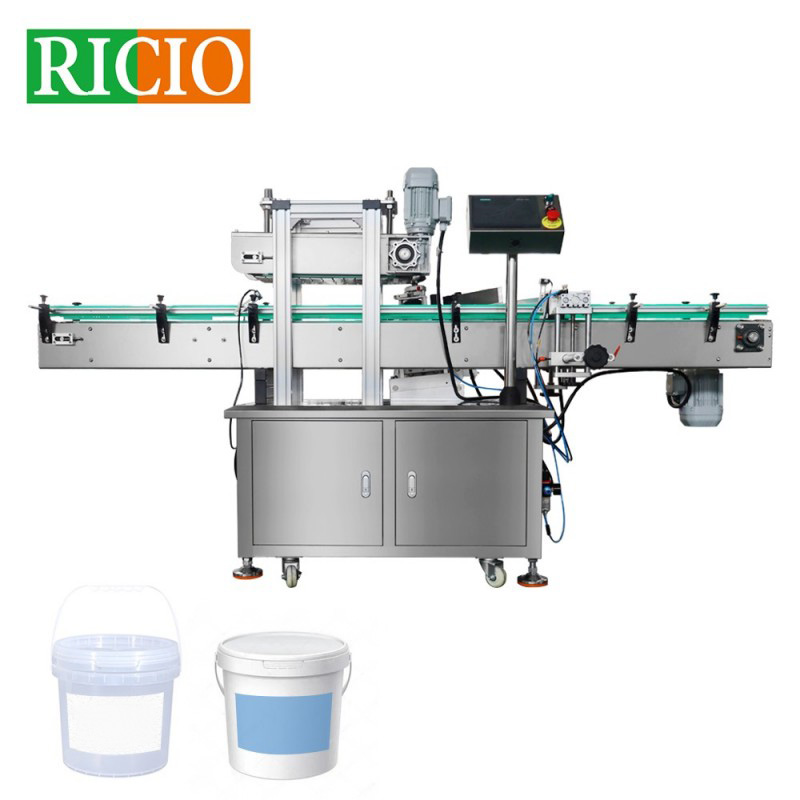

Automatic Conical Pail Labeling Machine

It is suitable for paint pails, coating drums, lubricant pails, chemical drums, food containers, and other handled pail products that require edge labeling, positioning labeling, or body label application after lid pressing. Considering the tapered body shape, curved surface, handle interference, and strict label position requirements of pail products, the machine integrates conveying, handle lifting, product detection, rotary positioning, label dispensing, and label pressing into one continuous process.

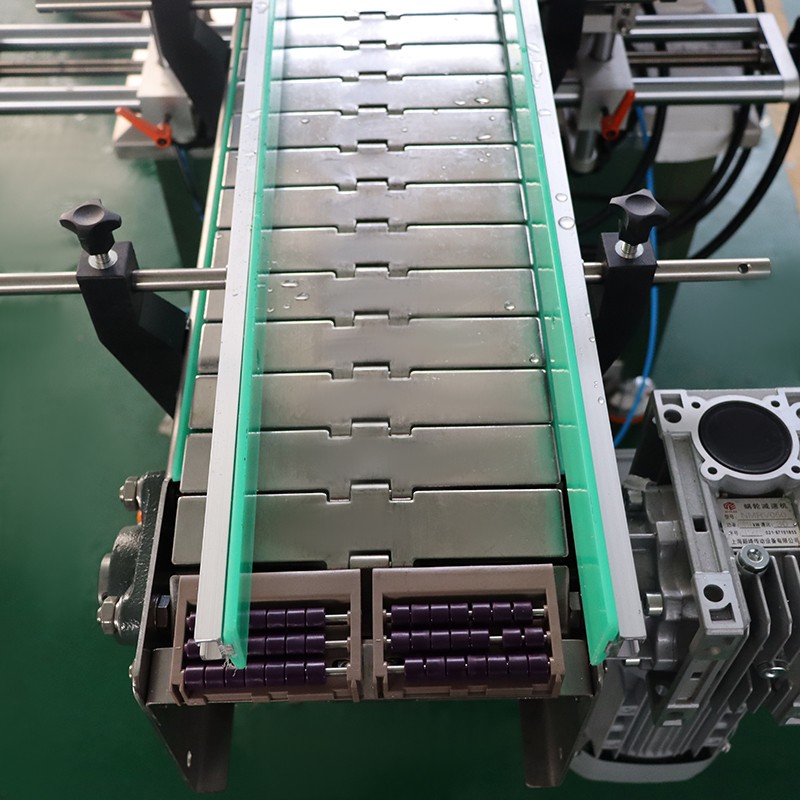

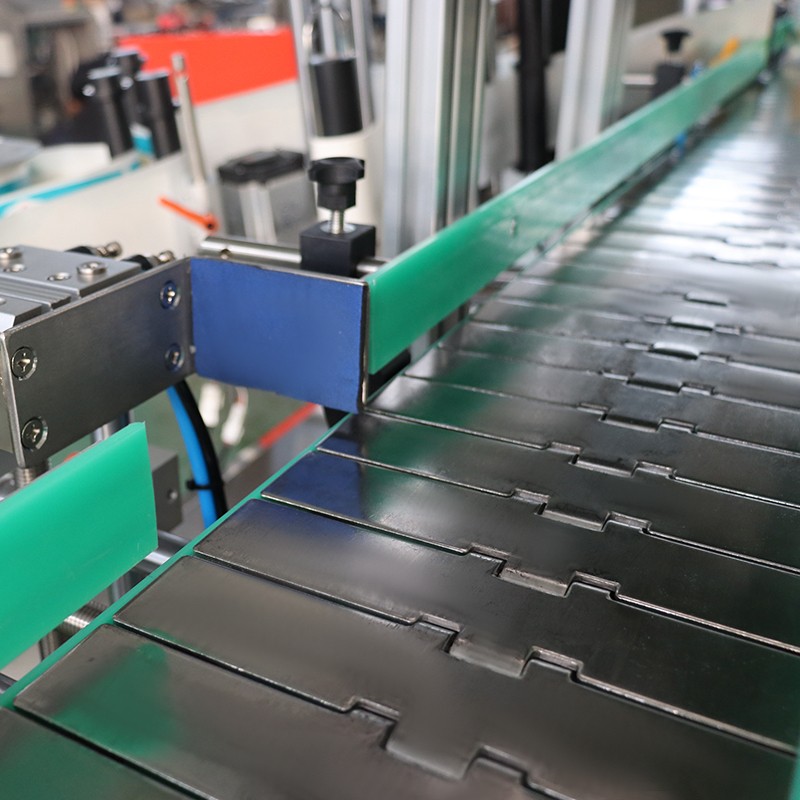

During operation, pails can be transferred from the previous station or placed manually onto the conveyor. The product first enters the handle-lifting mechanism, which raises and supports the handle to prevent it from affecting the labeling area. Once the product is detected, the control system receives the signal, the rotary platform lifts the pail, and the drum rotating mechanism holds and rotates the container.

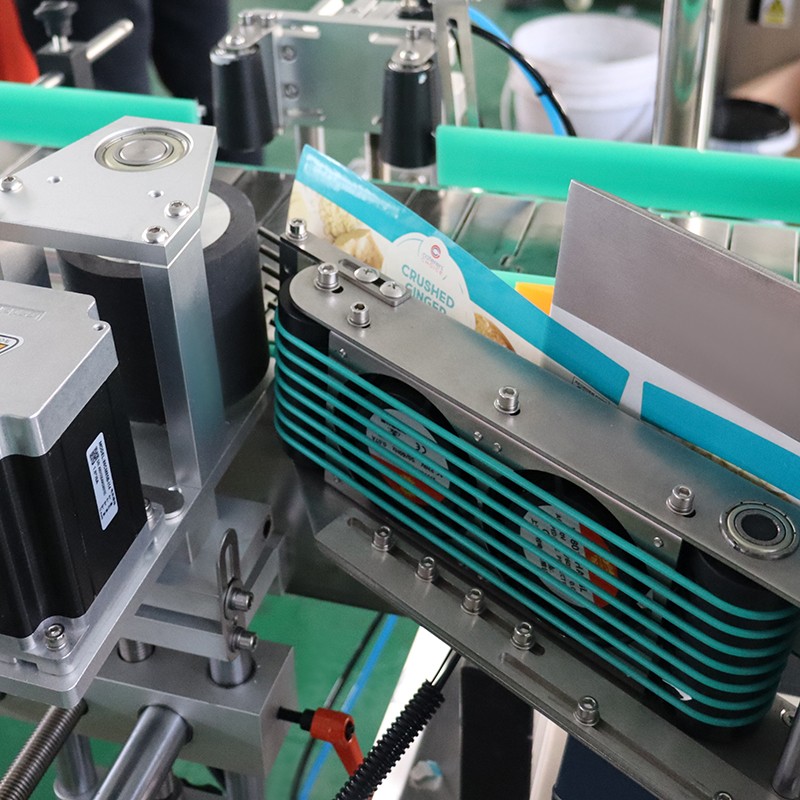

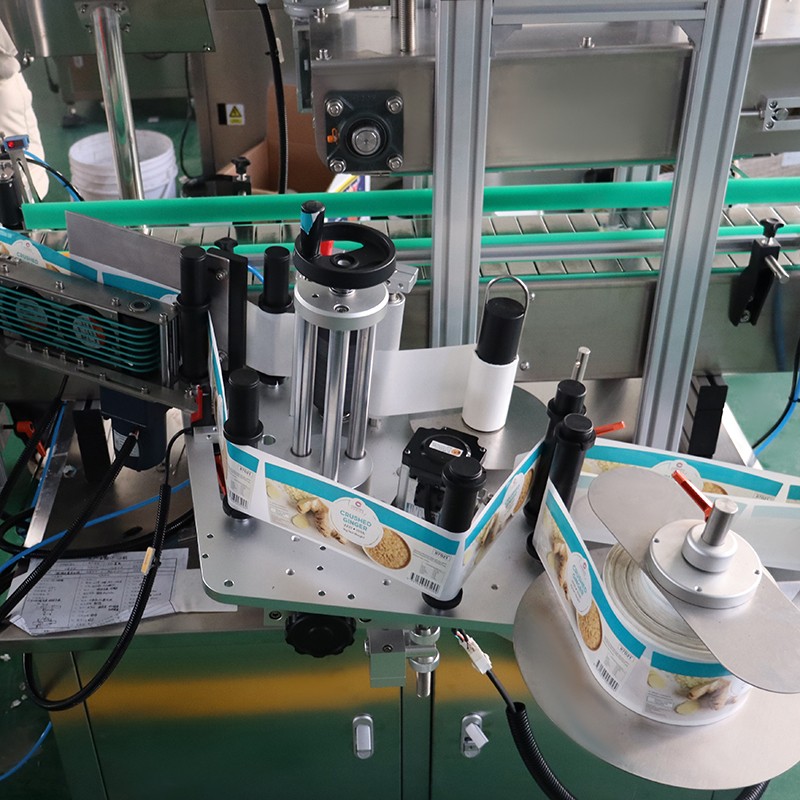

When the positioning sensor identifies the preset labeling point, the labeling system dispenses the label and applies it accurately to the pail body or designated edge area. The pressing mechanism then smooths the label firmly onto the surface, helping reduce label deviation, edge lifting, bubbles, and missed labeling. The main advantages of the automatic conical pail labeling machine are strong pail compatibility, stable positioning, and easy adjustment.

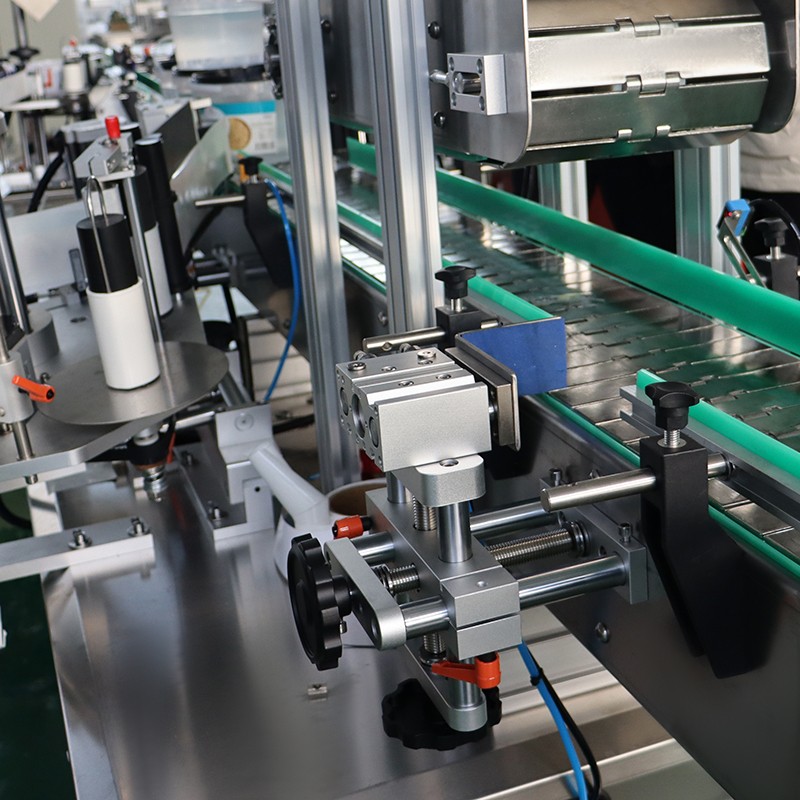

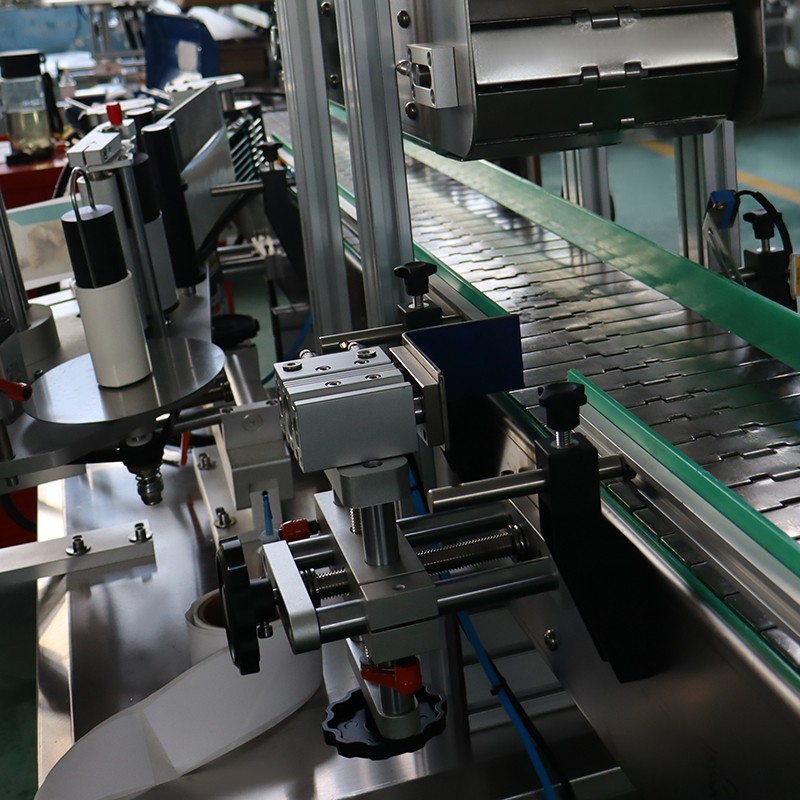

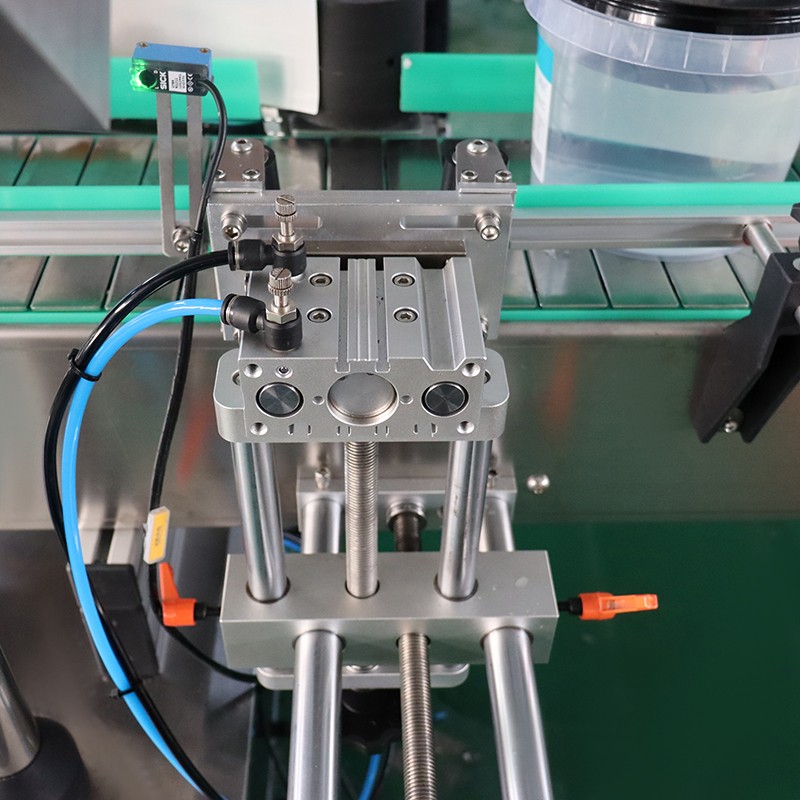

The automatic conical pail labeling machine can be adjusted forward and backward, left and right, up and down, as well as by angle, making it suitable for different pail diameters, heights, taper shapes, and label positions. It can support single-label, double-label, front-and-back label, or fixed circumferential position labeling according to production requirements. The intelligent photoelectric detection system supports no-product-no-label operation, label detection, and automatic correction, helping reduce label waste and production losses.

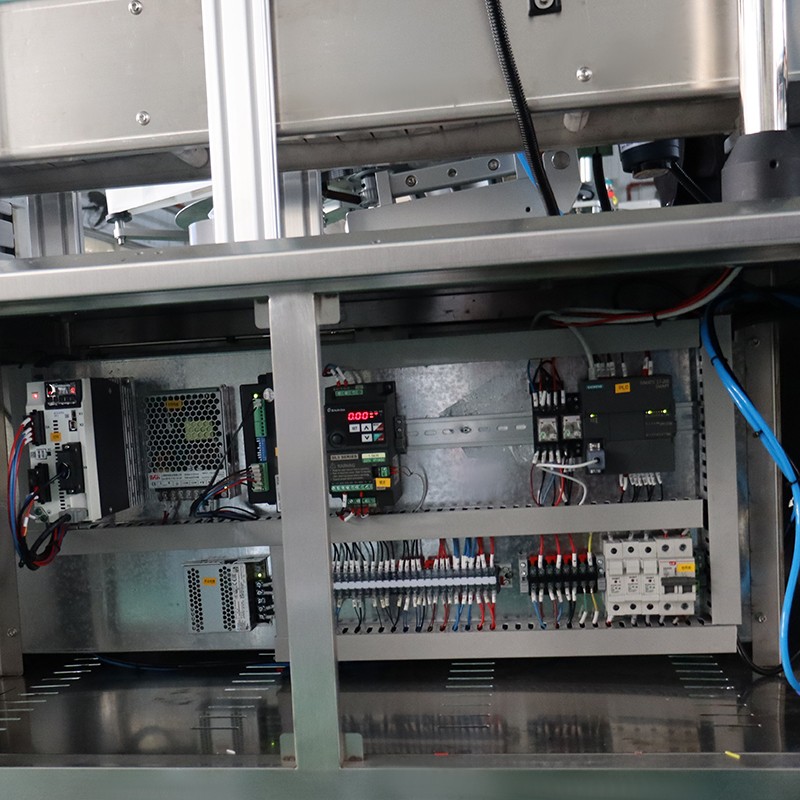

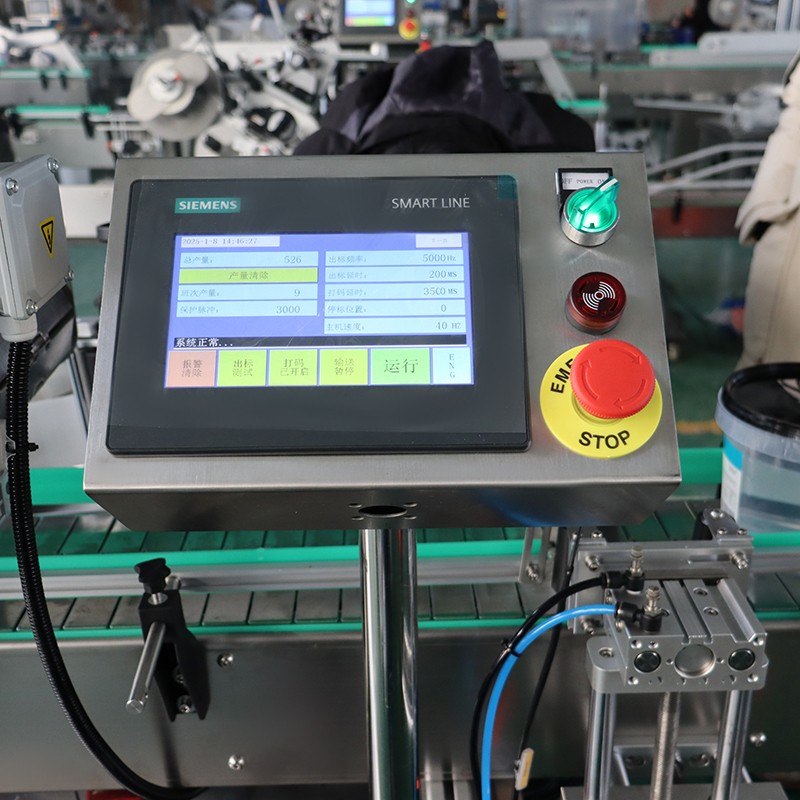

The automatic conical pail labeling machine is equipped with a touch screen human-machine interface, allowing operators to set parameters, adjust speed, and switch functions easily. It supports production counting, automatic stop, power-saving standby, production quantity reminders, and parameter permission protection, making daily production management more convenient.

The main machine body is built with stainless steel and aluminum alloy materials, offering strong durability and easy cleaning, which makes it suitable for chemical, food, pharmaceutical, and other production environments that require stable and hygienic equipment. The automatic conical pail labeling machine is suitable for pail products with a diameter of approximately Φ150–400mm and a height of 200–500mm.

It supports label heights from 10–150mm and label lengths from 15–300mm, with customized specifications available according to customer samples. The labeling speed can be adjusted according to pail size, label size, and production rhythm, with a capacity of up to 10–25 pails per minute.

Optional functions such as a thermal coding printer, inkjet printer, automatic feeding device, automatic collection device, additional labeling unit, and unlabeled product rejection system can be added to support production date, batch number, traceability code, and higher line automation requirements.

This machine is widely used in coating, paint, lubricant, adhesive, food ingredient, daily chemical, pharmaceutical, toy, and chemical pail packaging industries.

For manufacturers looking to improve pail labeling efficiency, maintain consistent label placement, reduce manual operation errors, and enhance packaging appearance, the automatic conical pail labeling machine provides a stable, practical, and customizable automatic packaging and labeling solution.
