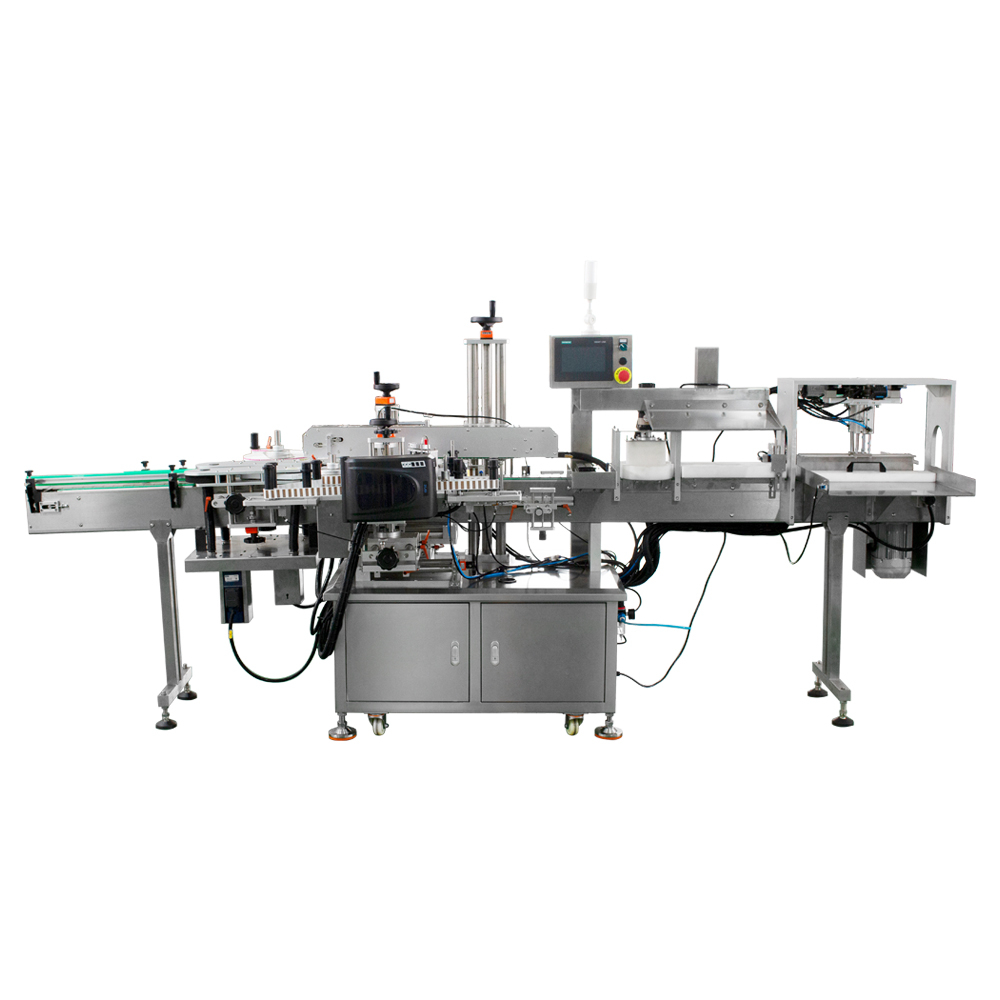

Double Side Labeling Machine plus Printer

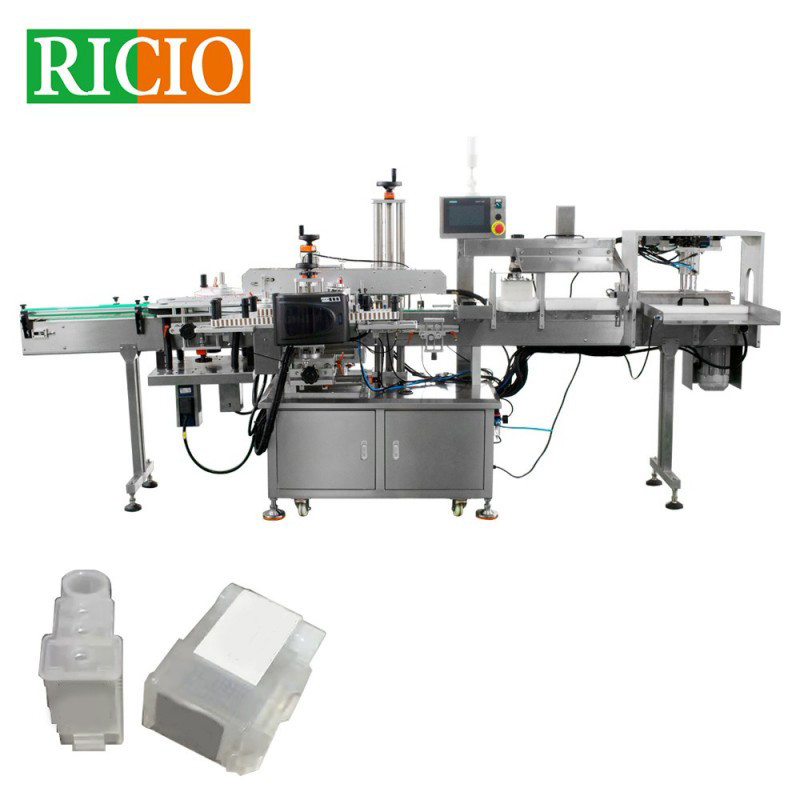

The Double Side Self-adhesive Labeling Machine Plus Printer is an automated labeling solution designed for double-sided labeling and coding applications on flat and square containers. It is suitable for plastic boxes and packaging products with different sizes and shapes, especially in chemical, biochemical, pharmaceutical and related industries. The machine integrates labeling and printing functions into one system, allowing production batch numbers, manufacturing dates, QR codes and other product information to be printed during the labeling process.

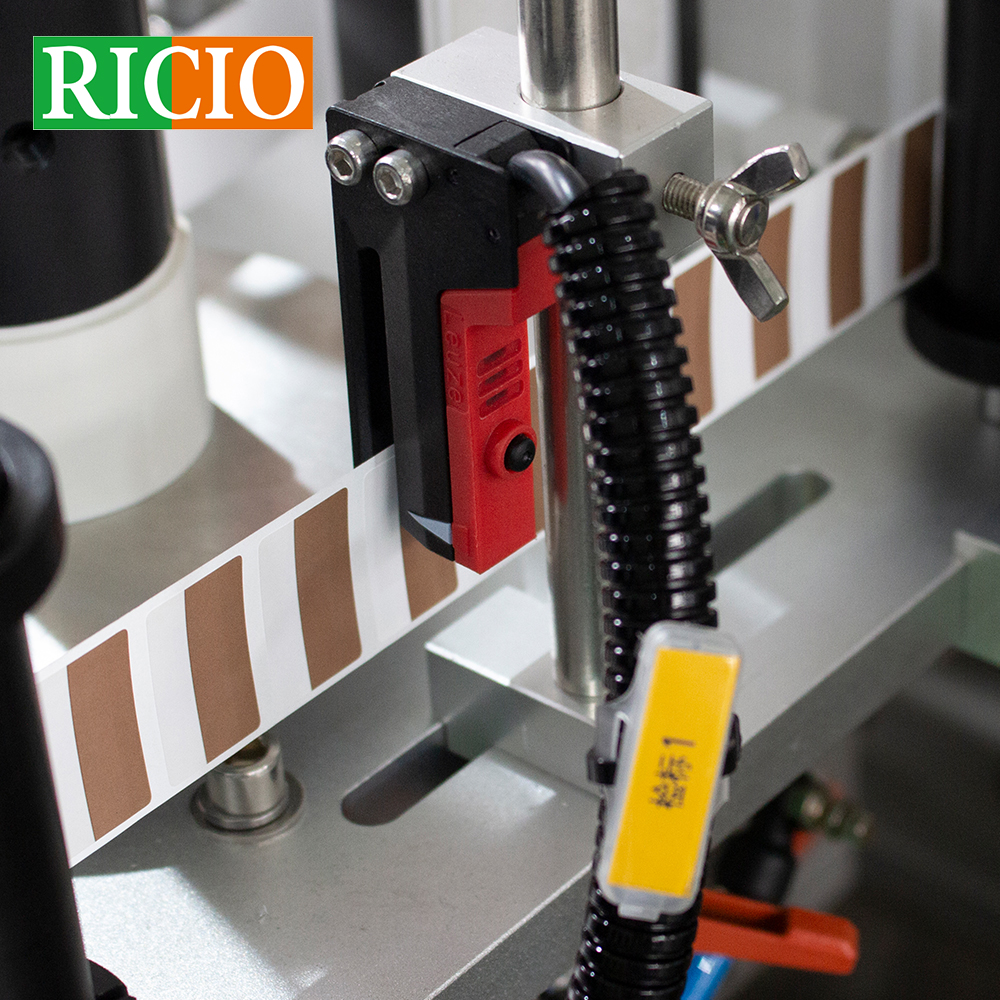

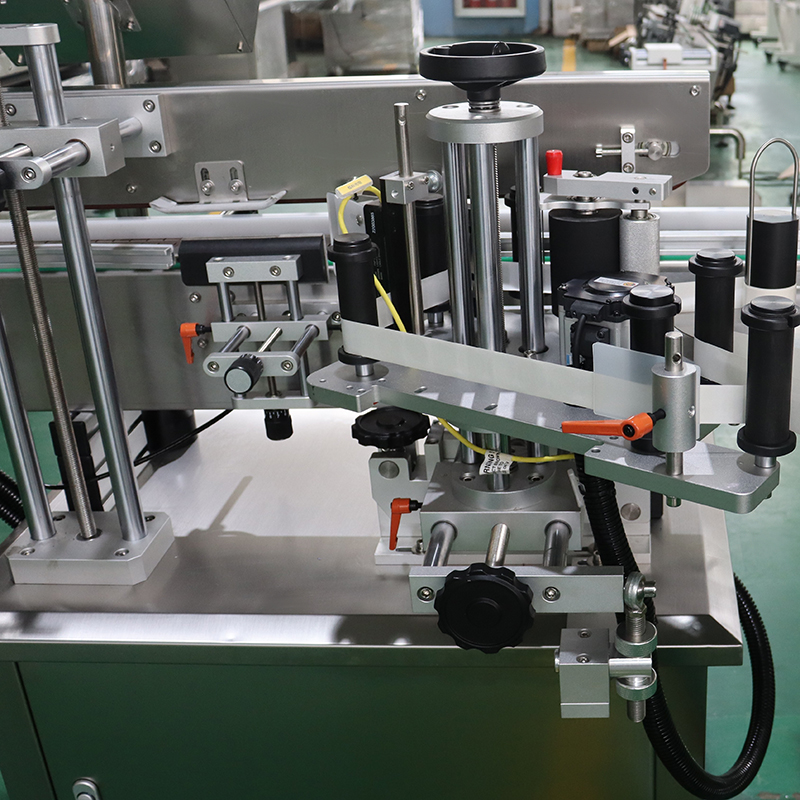

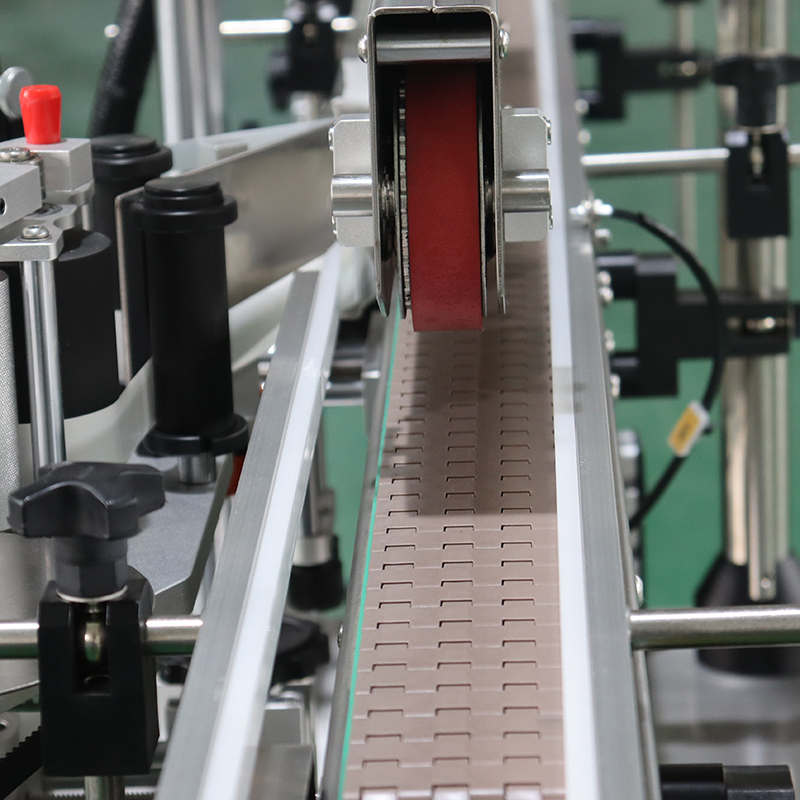

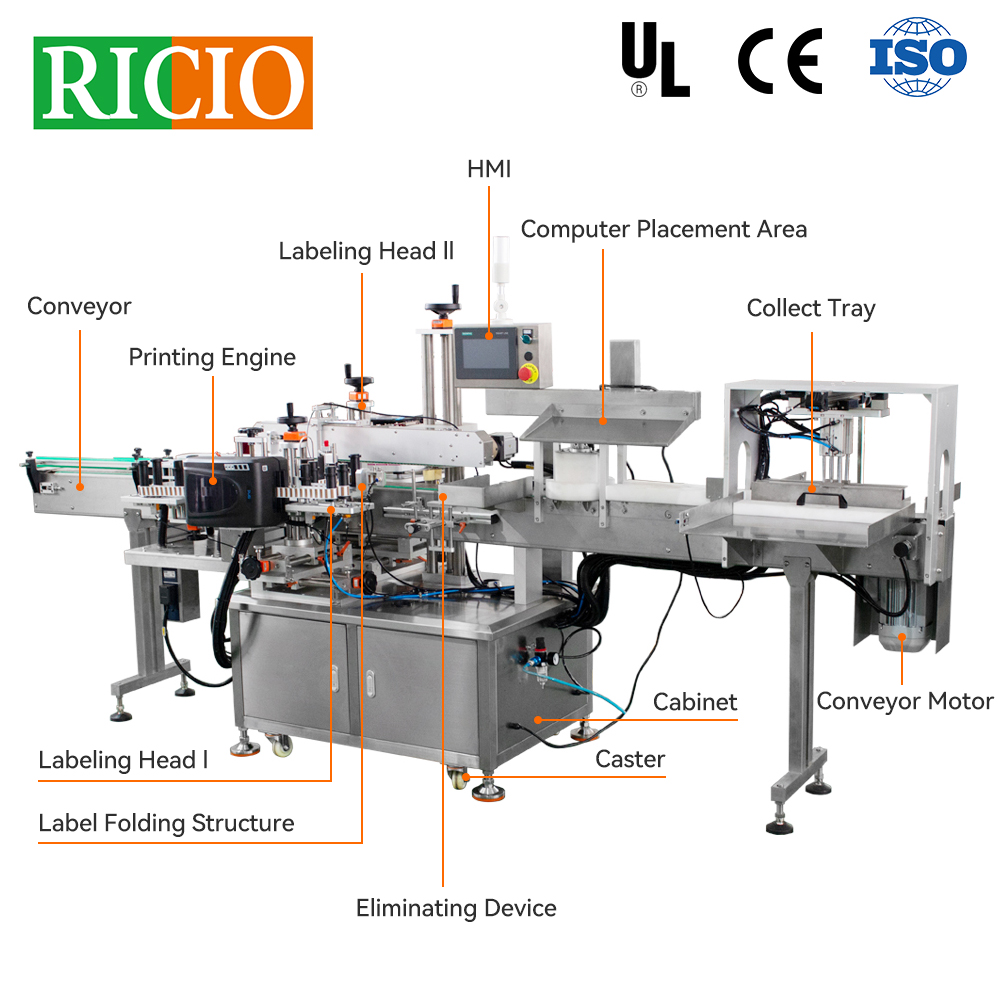

Equipped with multiple labeling heads, the machine completes accurate label positioning and secondary pressing operations. The first labeling process ensures precise placement, while the additional extrusion labeling mechanism helps remove air bubbles and wrinkles, improving the overall labeling appearance and stability.

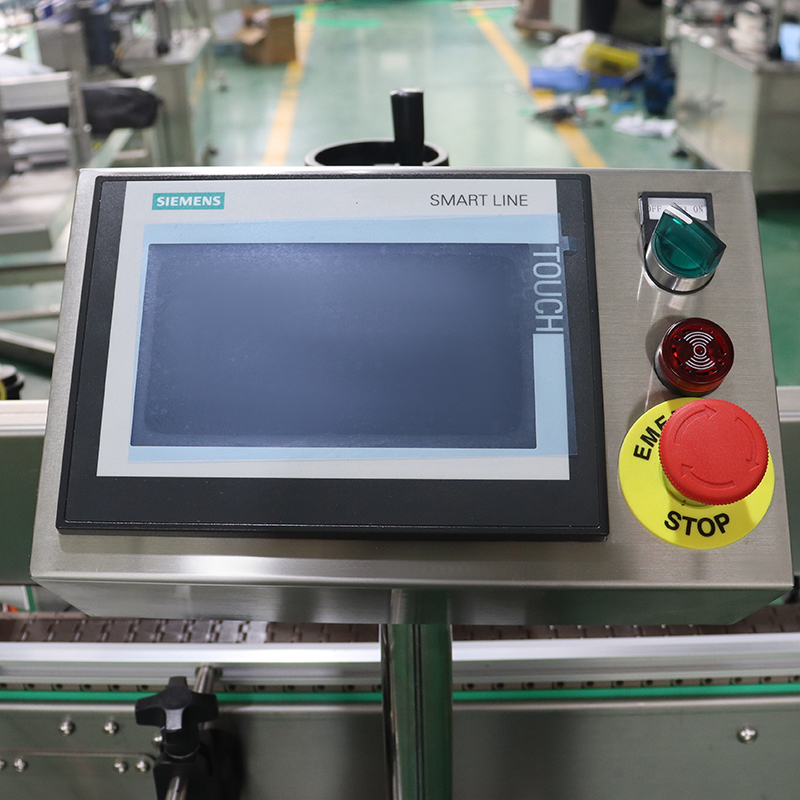

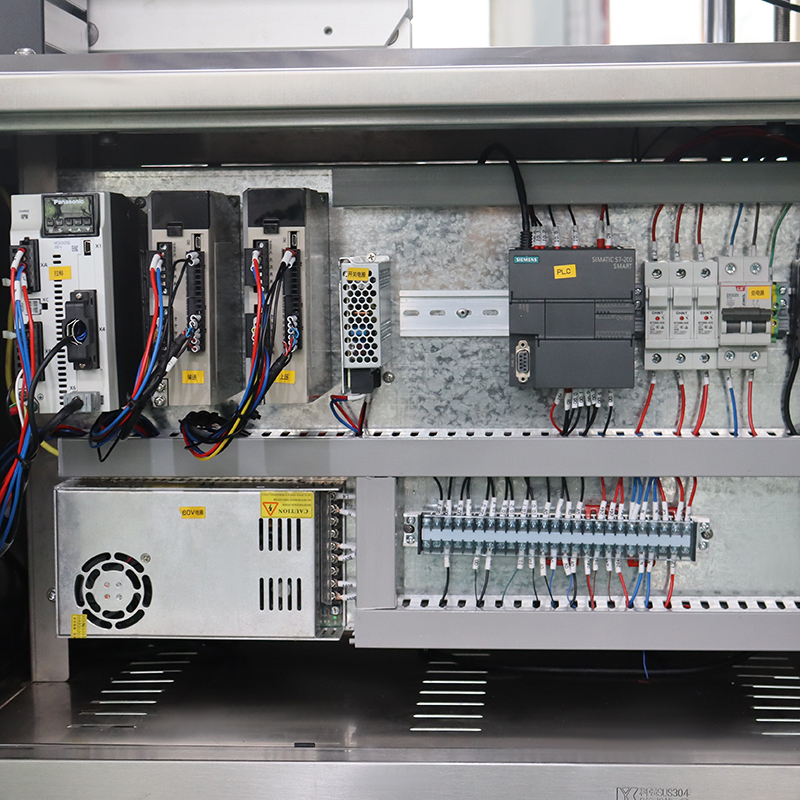

The Double Side Labeling Machine plus Printer adopts a PLC-based control system combined with a color touchscreen interface, providing convenient operation and flexible parameter management. The HMI system supports Chinese and English language switching, production counting, parameter storage, production setting functions and fault indication, making it easier to manage different product labeling requirements.

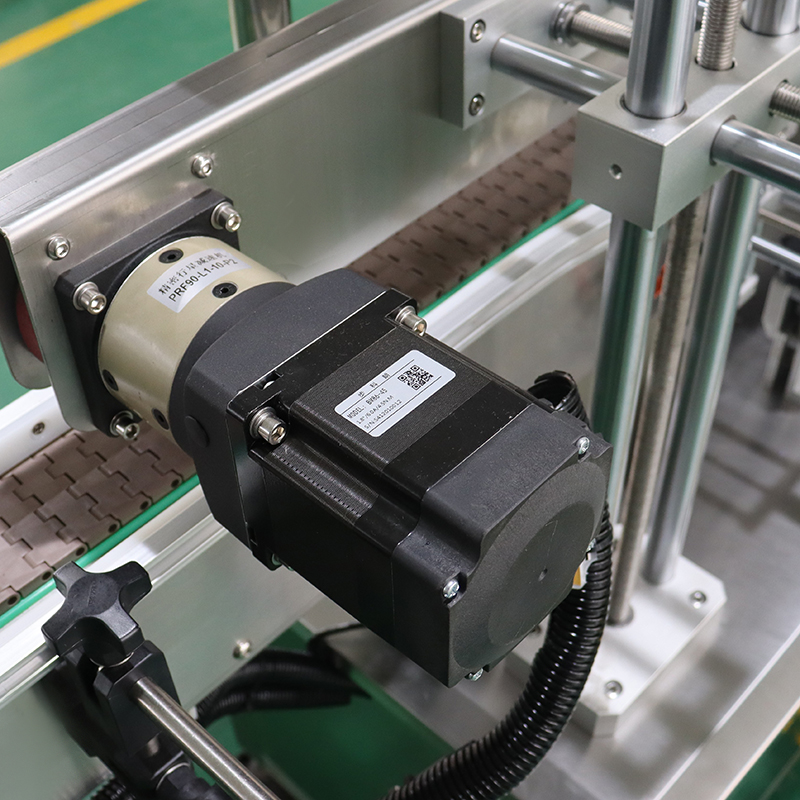

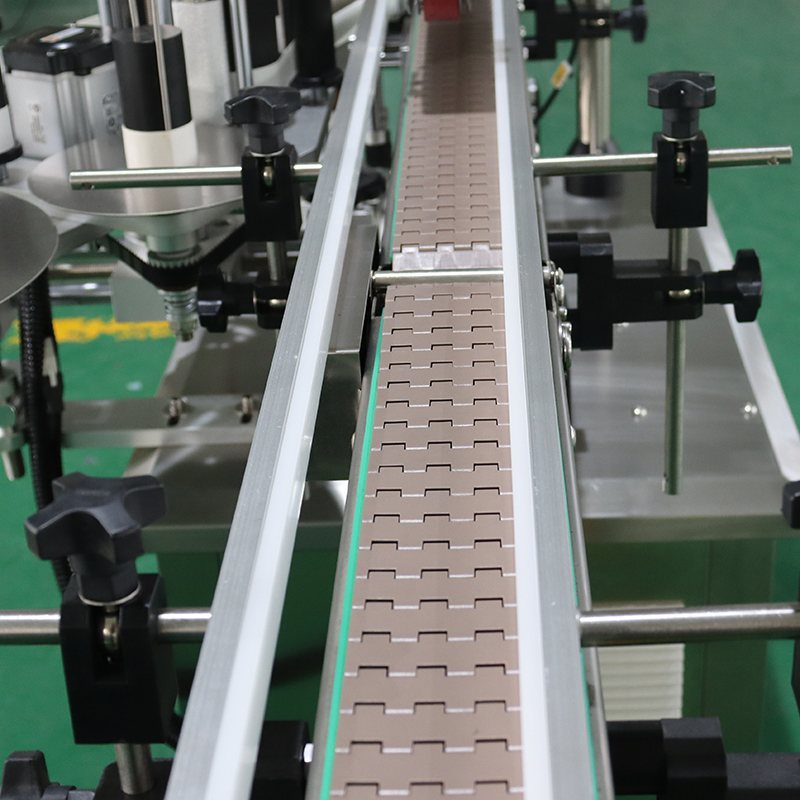

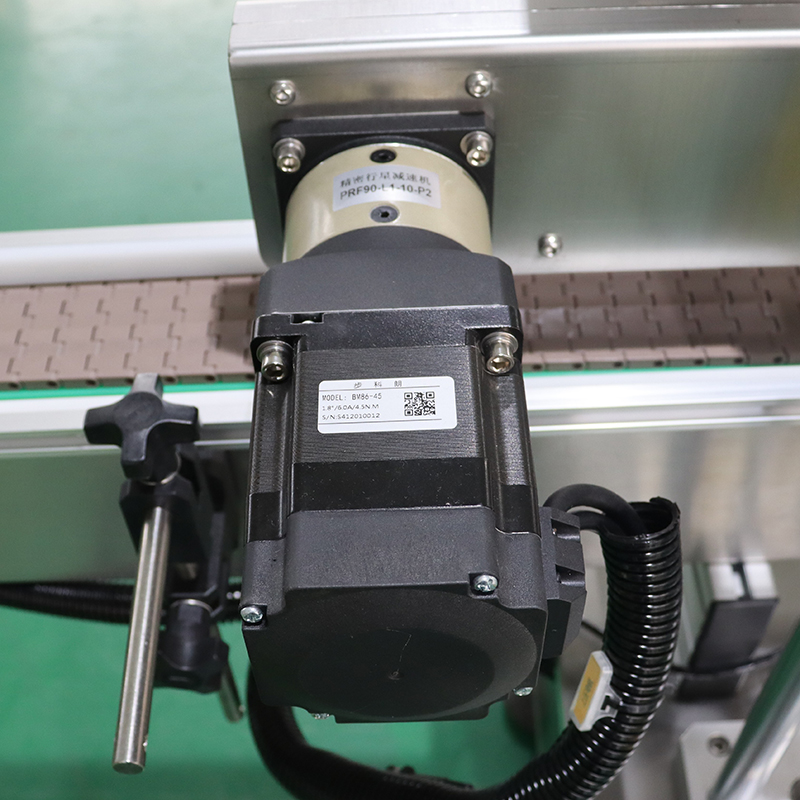

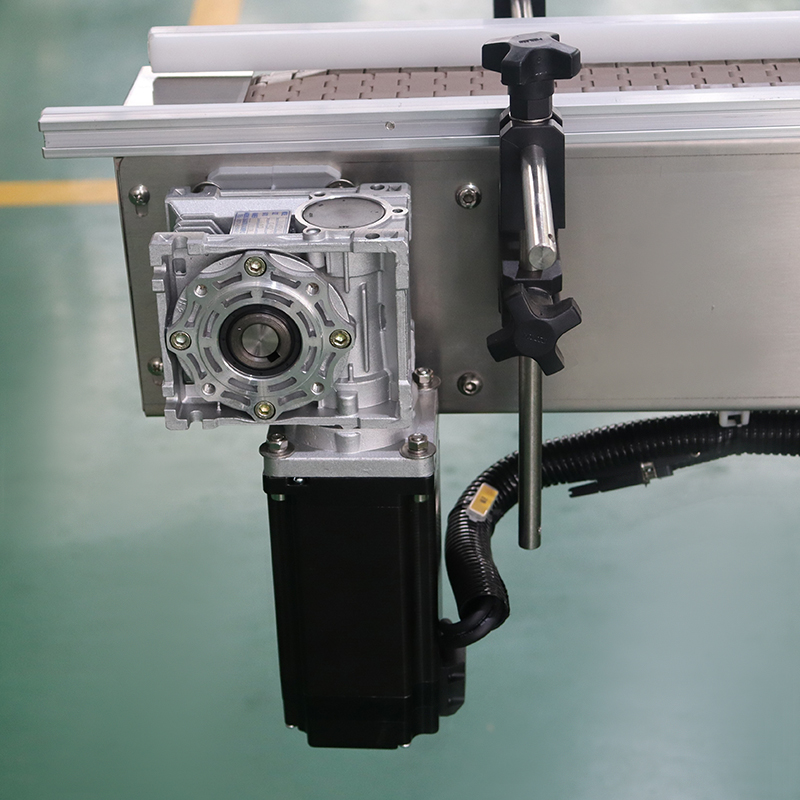

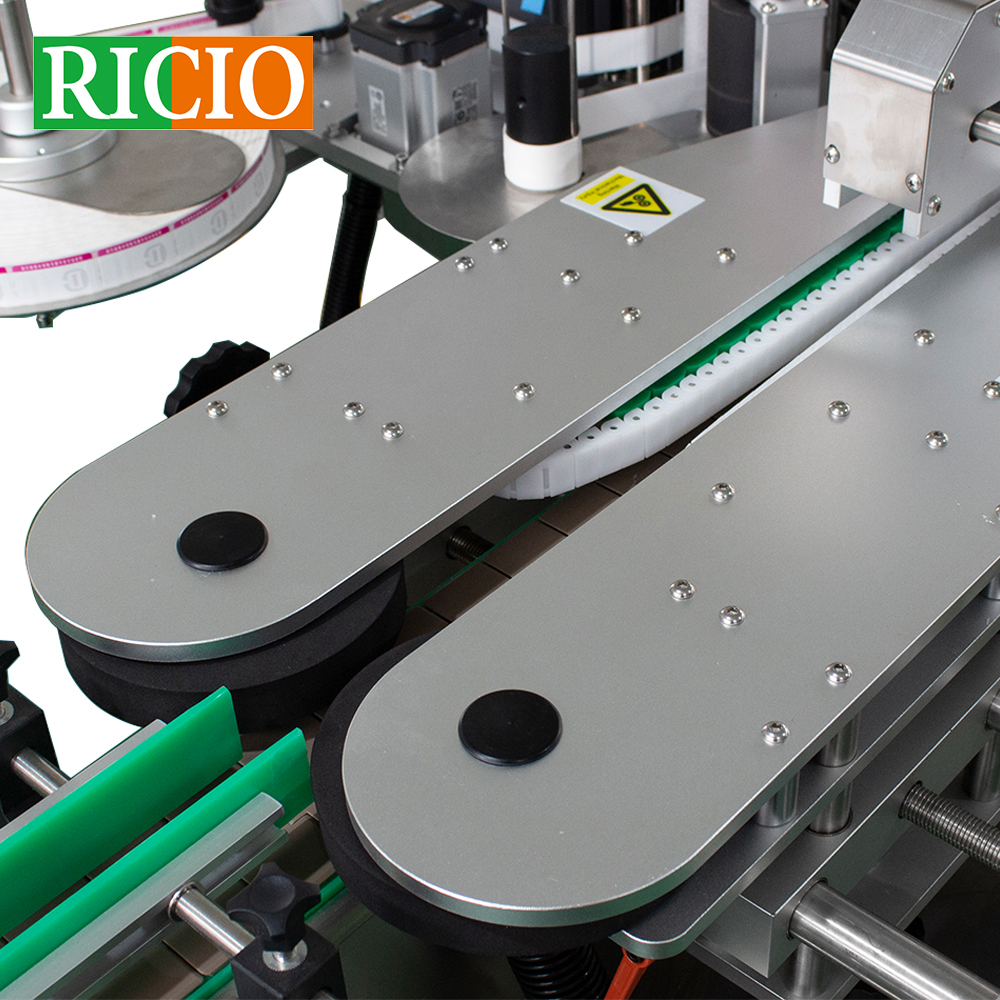

The machine uses a synchronized conveyor structure to automatically separate, align and transport products before labeling. The stable conveying process reduces manual adjustment requirements and helps maintain consistent labeling performance during continuous production.

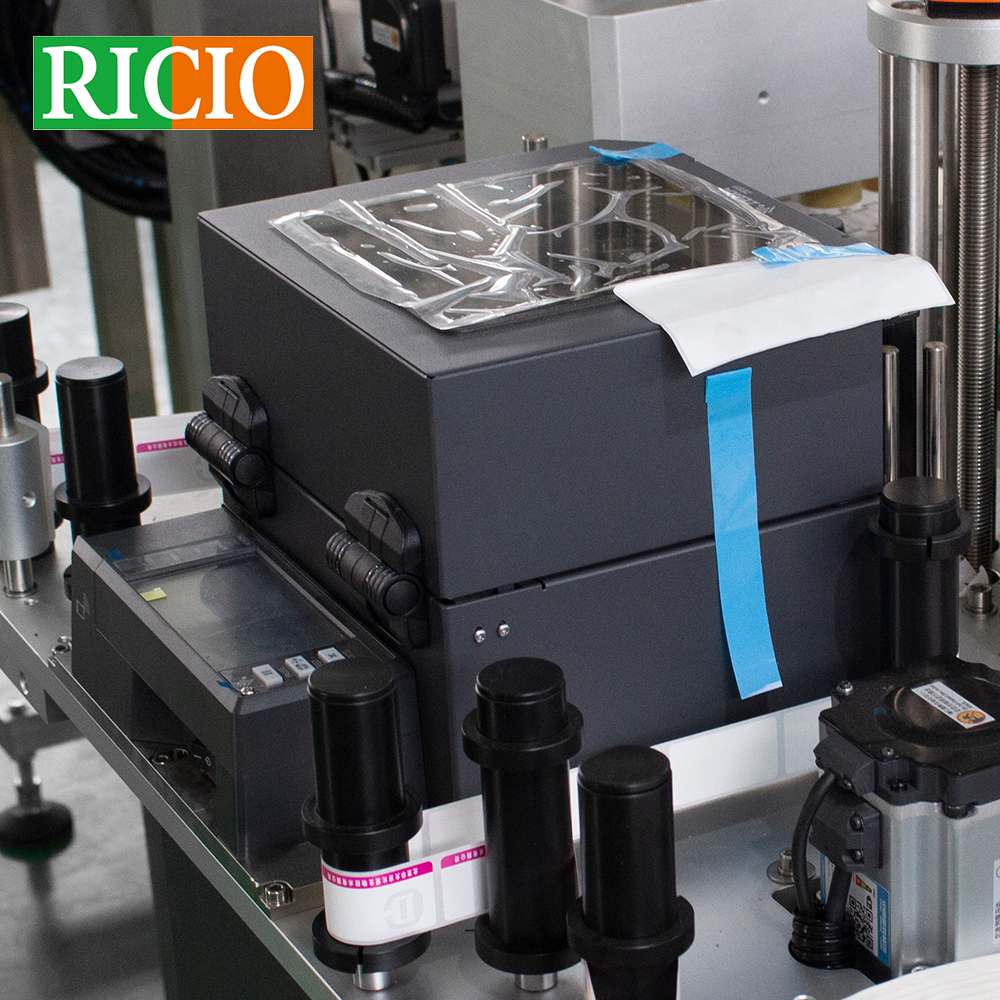

With optional thermal coding printers, spraying printers and data readers, the equipment can realize integrated coding, barcode identification and QR code traceability functions. This makes it suitable for industries requiring product tracking, regulatory identification and automated packaging management.

The main structure is manufactured with SUS304 stainless steel and T6 aluminum alloy materials, meeting hygienic production requirements and supporting stable operation in long-term industrial environments.

Application Fields

The Double Side Self-adhesive Labeling Machine Plus Printer is widely used for:

Pharmaceutical packaging
Chemical product packaging
Biochemical products

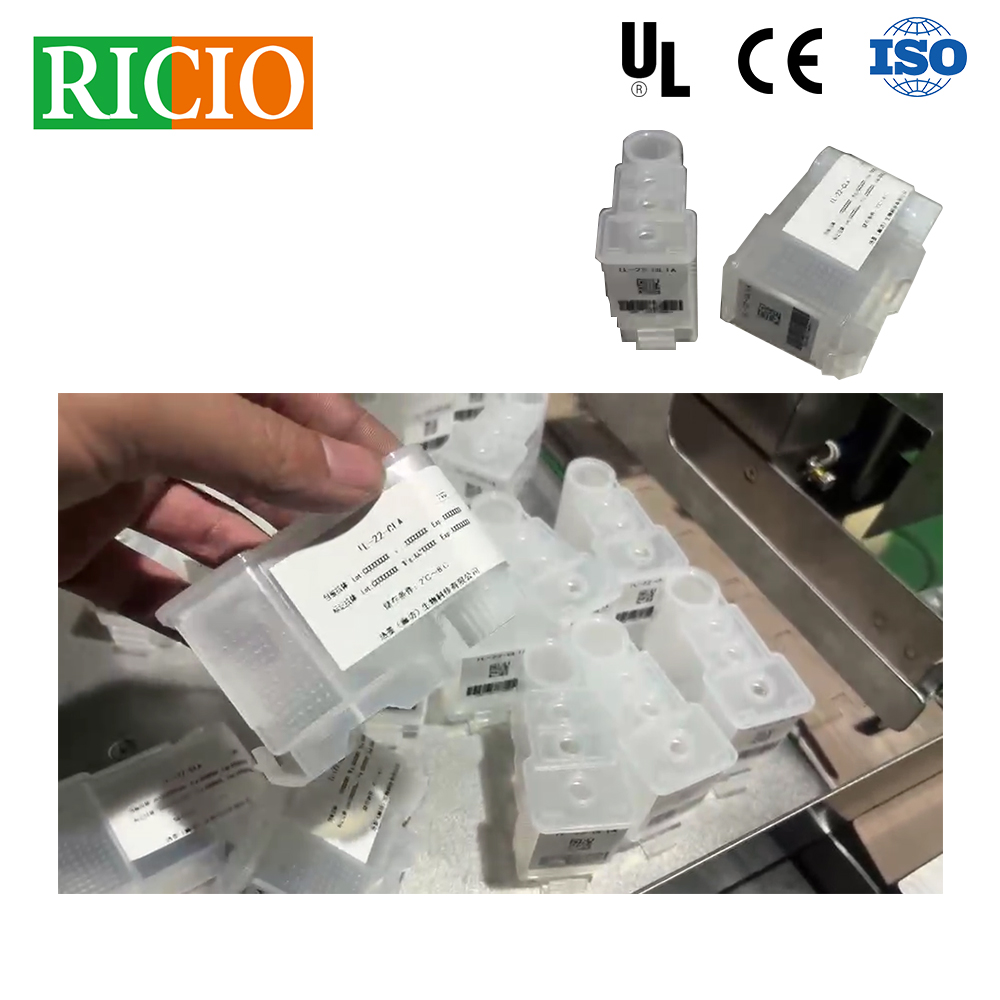

Plastic boxes and square containers
Products requiring barcode or QR code identification
Automated packaging production lines

Power Supply	380V 50HZ 3-phase (industrial grade)
Power Consumption	2000W
Labeling Speed	60-150 pcs per minute (the actual labeling speed also depending on the size of products & labels, human feeding speed, etc.)
Labeling Accuracy	+1mm (depending on product characteristics, softness & hardness and roundness, etc.)
containers’s Height Range	40-400 (mm) (can be customized if beyond the common height range)
Label Size Range	Height: 10-150 (mm) Length:10-300 (mm) (can be customized if exceeding the common label size)
Roller Film Size	Inner Dia.: Φ76mm (min.) Outer Dia.: Φ300 (max.)
Machine Weight	GW=650.00kg NW=600.00kg
Packaging Size	LWH: 2.90m1.50m1.70m
Conveying Belt Width	can be customized according to customer provided sample bottles actual data. If no samples for testing, we will prepare the machine based on normal/standard size
