Automatic Goblet Single Side Sticker Labeling Machine

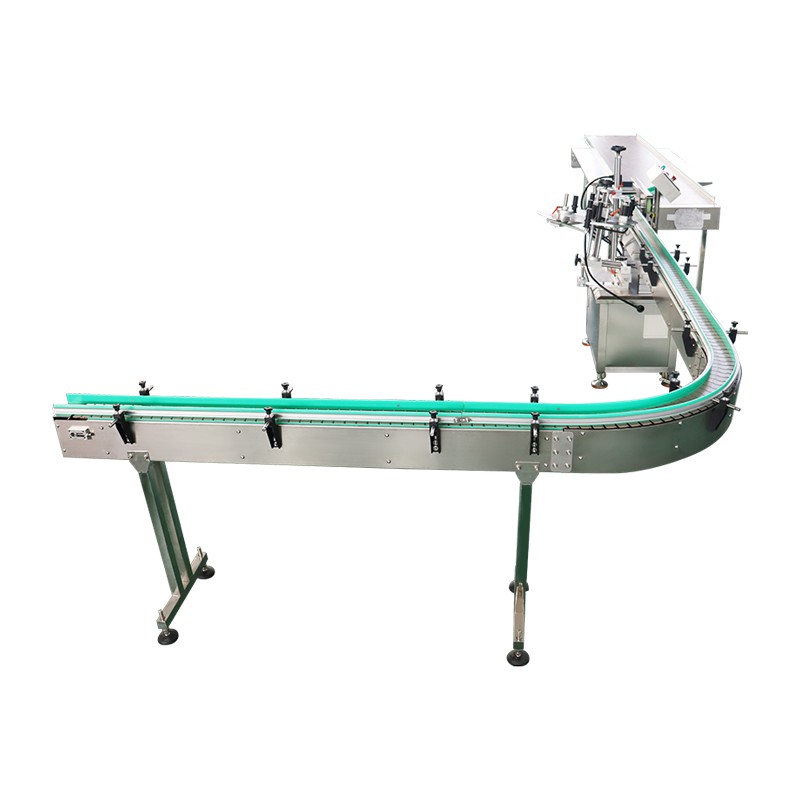

Considering the curved surface, small base support, and easy tilting of goblets during conveying, the machine is specially designed with cup separation, alignment, holding, detection, and labeling mechanisms to ensure stable transfer and accurate single-side label application. During operation, goblets can be fed manually, connected with a production line, or supplied by a cup sorting turntable. The separation and alignment mechanism automatically spaces the products and guides them into the correct position.

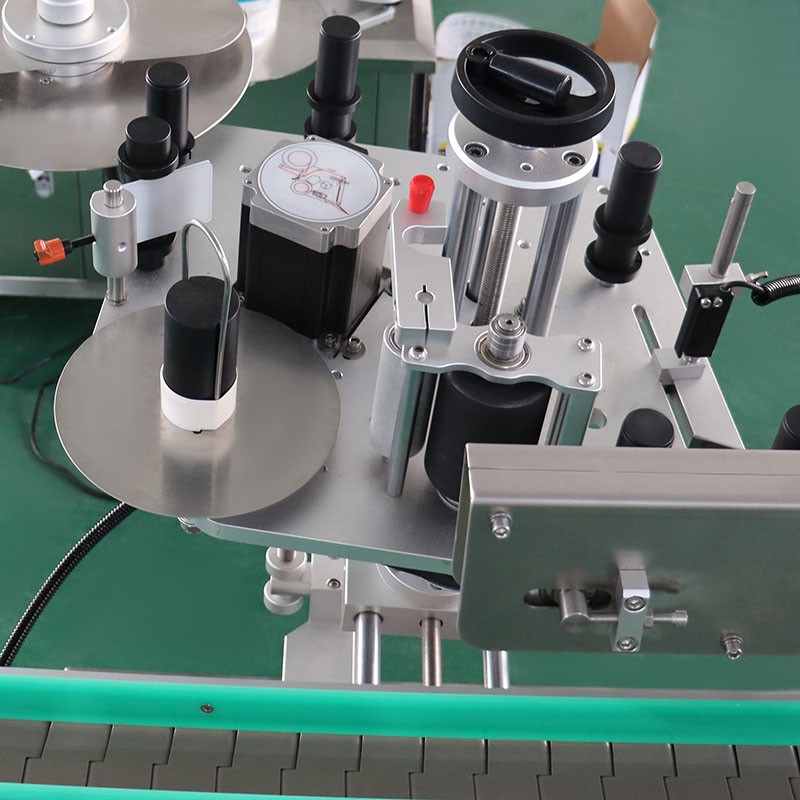

When a goblet enters the labeling area, the detection system identifies its position, and the control system drives the label dispensing mechanism to output the label. The rolling application mechanism then presses the label smoothly onto the side surface of the goblet. After labeling, the product continues to the next process or collection area, making the machine suitable for continuous batch production.

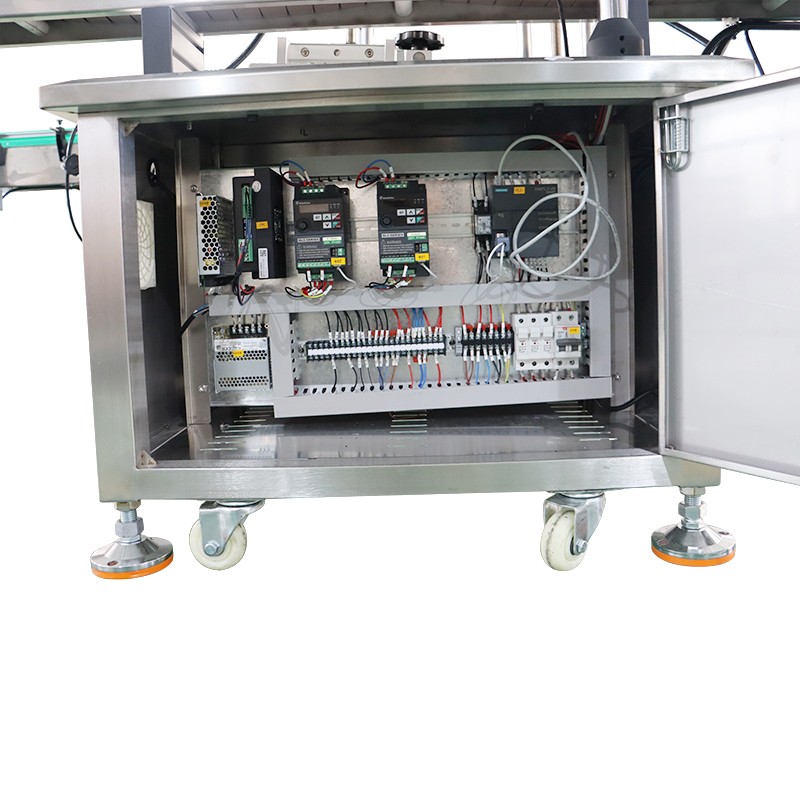

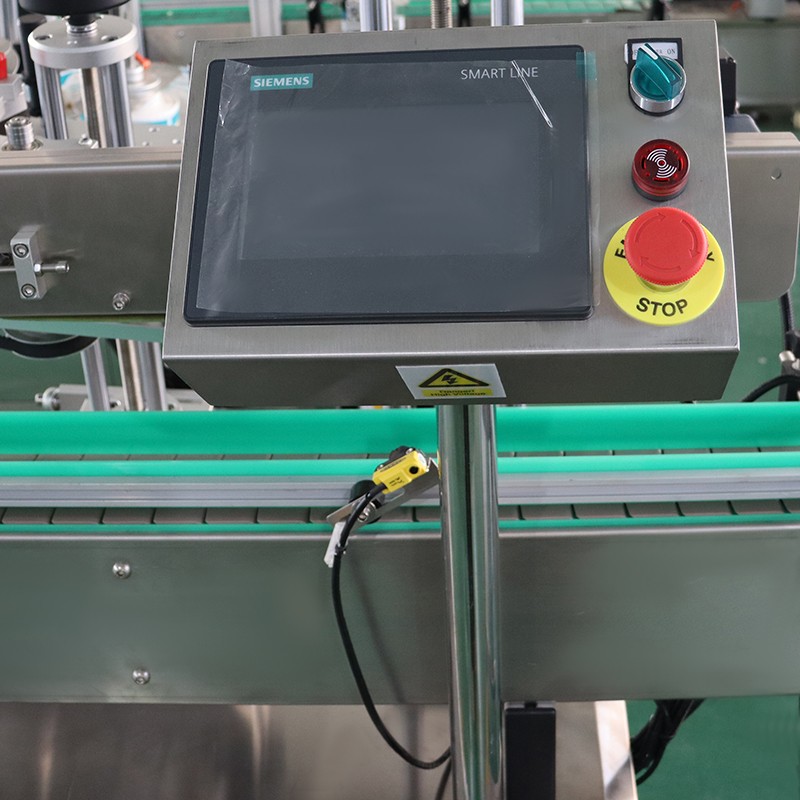

The main advantages of the automatic goblet single-side sticker labeling machine are stable labeling performance, strong adaptability, and easy operation. The machine is equipped with PLC control and a touch screen interface, allowing operators to set and adjust parameters according to different goblet sizes, label specifications, and production speeds.

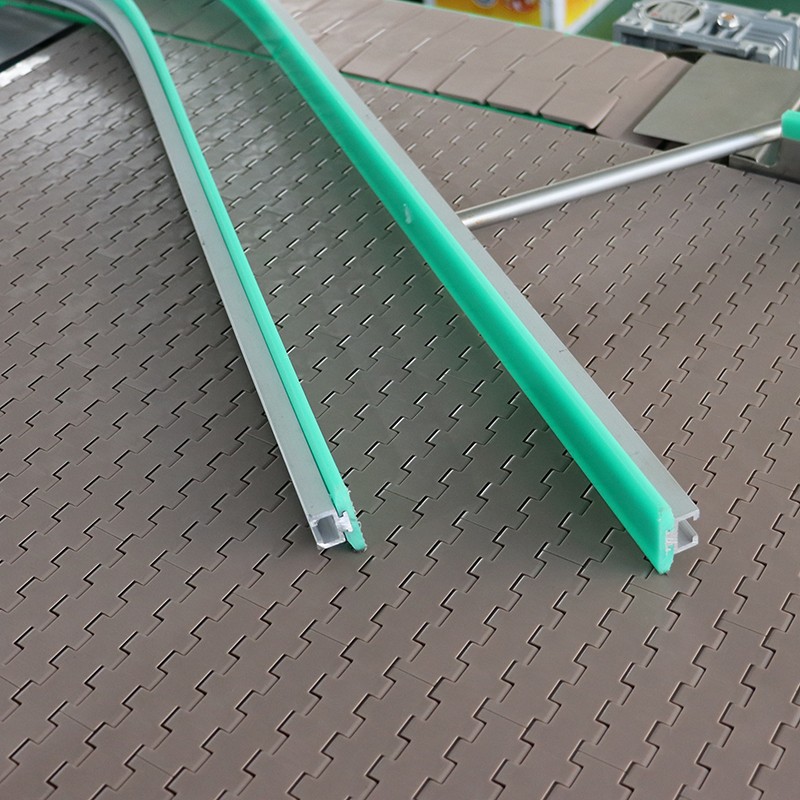

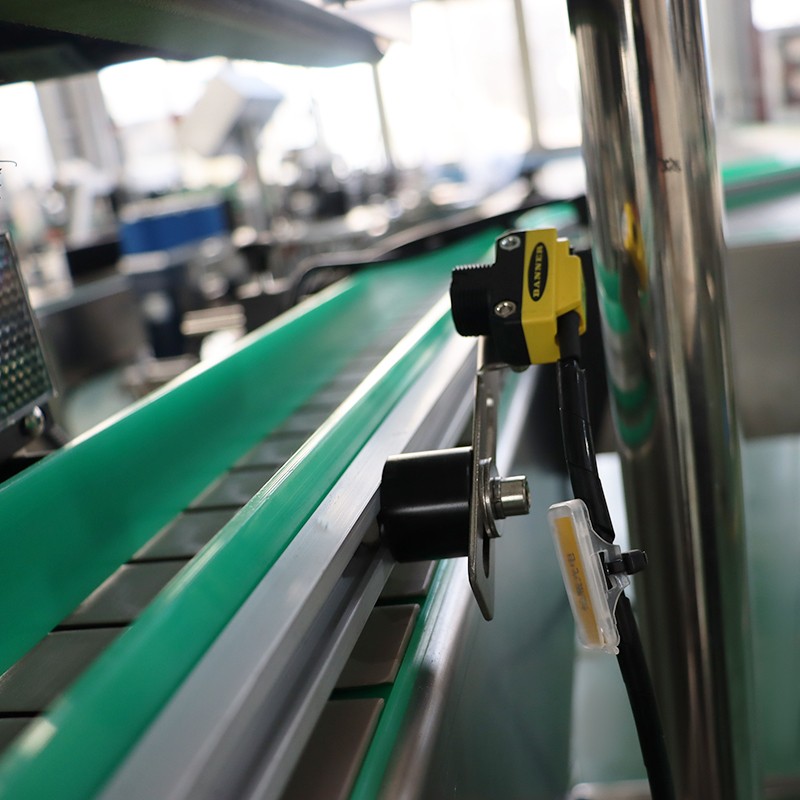

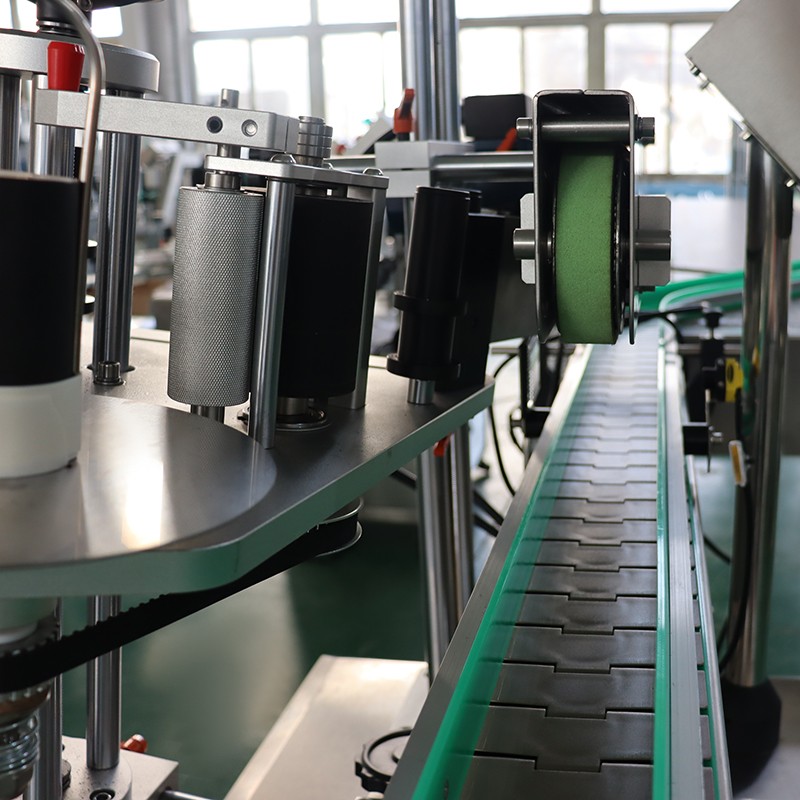

The cup separation and correction mechanism helps products enter the labeling station in an orderly way, while the top pressing and guiding structure helps reduce tilting and position deviation during conveying. The photoelectric detection system supports cup-to-label matching, preventing label output when no product is present and reducing label waste. The pressing mechanism improves label adhesion and helps reduce bubbles, wrinkles, skewed labels, and edge lifting for a cleaner finished appearance.

The automatic goblet single side sticker labeling machine is suitable for cup-shaped products with a diameter of approximately 25–120mm and a height of 40–400mm. It supports label heights from 10–150mm and label lengths from 10–300mm, with customized specifications available according to sample products.

Optional functions such as a thermal coding printer, inkjet printer, transparent label sensor, and QR code or barcode reader can be added to print or read production dates, batch numbers, expiry dates, and traceability codes during labeling, helping reduce secondary packaging steps and improve production automation.

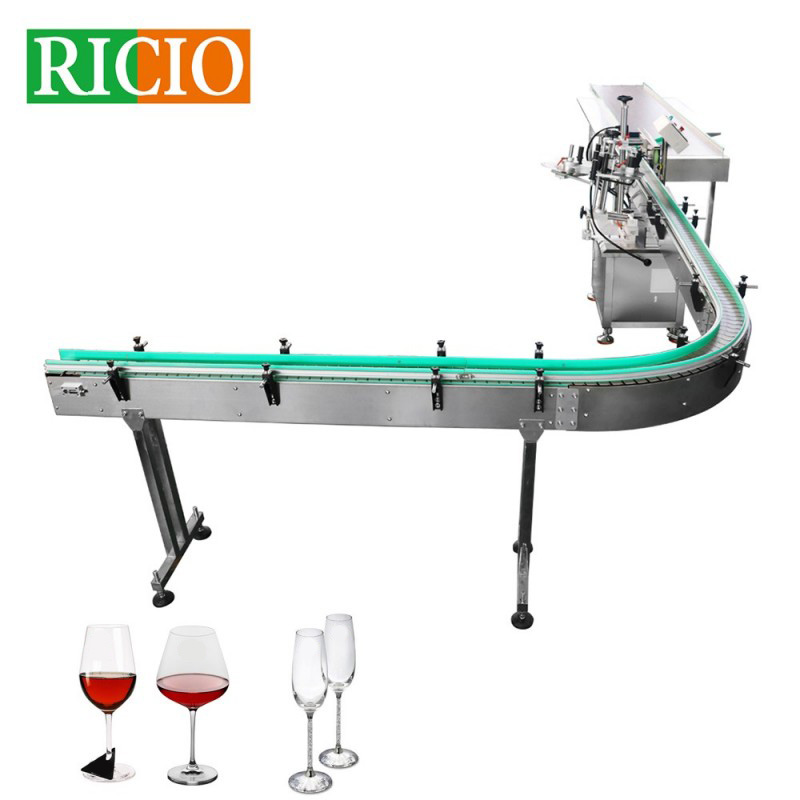

The automatic goblet single side sticker labeling machine is widely used for side labeling of wine glasses, goblets, glass cups, gift set cups, promotional cups, customized cups, and other cup-shaped products.

For manufacturers looking to improve goblet labeling efficiency, maintain consistent label placement, reduce manual labeling errors, and enhance product packaging quality, this machine provides a stable, practical, and production-line-friendly automatic labeling solution.
